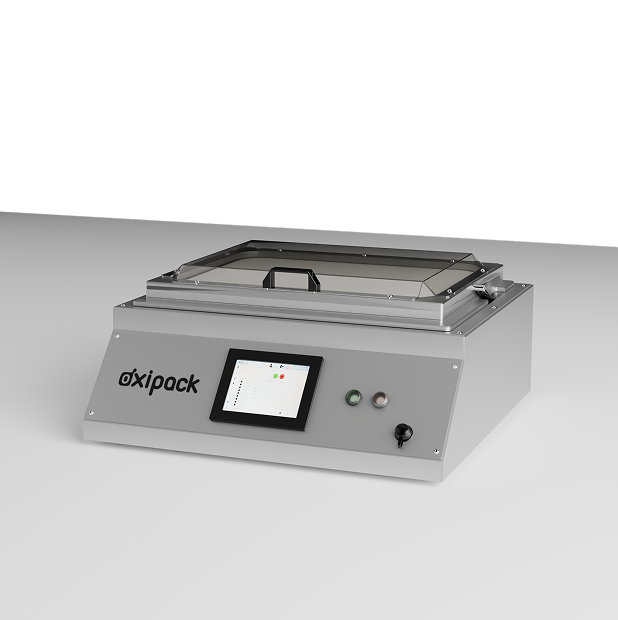

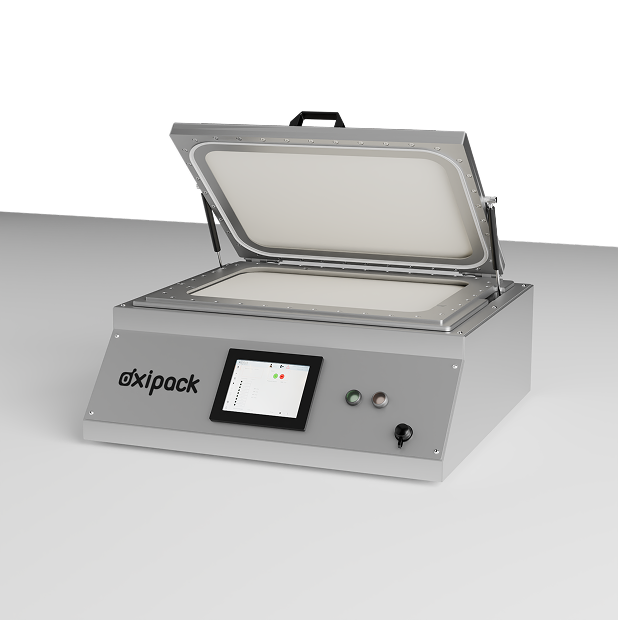

Stationary Leak Tester R&D
The Oxipack Stationary Leak Tester R&D is our solution for testing a wide range of flexible (MAP) packaging.Through the use of two rubber membranes it is possible to create a deep vacuum in the test chamber without damaging the packaging while creating a very small measuring space around the packaging. Our standard solution allows us to detect big and micro leaks. The R&D version has a 7” touchscreen, which makes it easy to manual change settings and read instant and previous results. The SLT R&D can non-destructively test multiple packs or sachets at the same time, allowing quick and efficient testing and objective results. The buttons on the machine will light up green (OK) or red (NOT OK): the operator will know immediately if the package is approved or not. The display will show the leakage so you will see instantly how serious the leak is. The SLT R&D measures according to the non-destructive detection of leaks in packages by vacuum decay method (ASTM F2338).
Features
- Non-Destructive Testing: Uses vacuum decay (ASTM F2338) to detect leaks without damaging packaging.
- Flexible Application: Tests both large and micro leaks in a wide range of flexible (MAP) packaging.
- Multi-Pack Testing: Capable of testing multiple packs or sachets simultaneously for greater efficiency.
- User-Friendly Interface: 7” touchscreen for easy operation, quick settings adjustments, and result monitoring.
- Instant Feedback: Visual indicators (green/red) and precise leakage measurements for immediate, objective results.
Benefits
- Cost-Effective Testing: Non-destructive method preserves packaging, reducing waste and saving resources.
- Accurate Results: Detects both large and micro leaks with precision for reliable quality control.
- Improved Efficiency: Tests multiple packages at once, speeding up the testing process.
- User-Friendly Operation: Intuitive touchscreen and visual indicators simplify use and decision-making.
- Dimensions and Weight: 665 x 705 x 333 mm (L x W x H) 40 KG
- Materials: Stainless steel, Annodized aluminium, Polycarbonate, Rubber
- Power supply: 100 - 230V 50/60HZ
- Air Supply: > 5.5 - < 8 bar / 8mm connection
- Compliance and IP rating: CE IP20
- Size measuring chamber: 350 x 500 x 116 mm (L x W x H)
- Leak detection method: ASTM F2338
- Minimum leakage: > 0,9 cm3/min
- Maximum testing capacity: 2P/M
- Connections: USB/Ethernet export, 24VDC logic (free programmable)
- Packaging type and size: MAP up to 350 x 500 x 116 mm (L x W x H)
