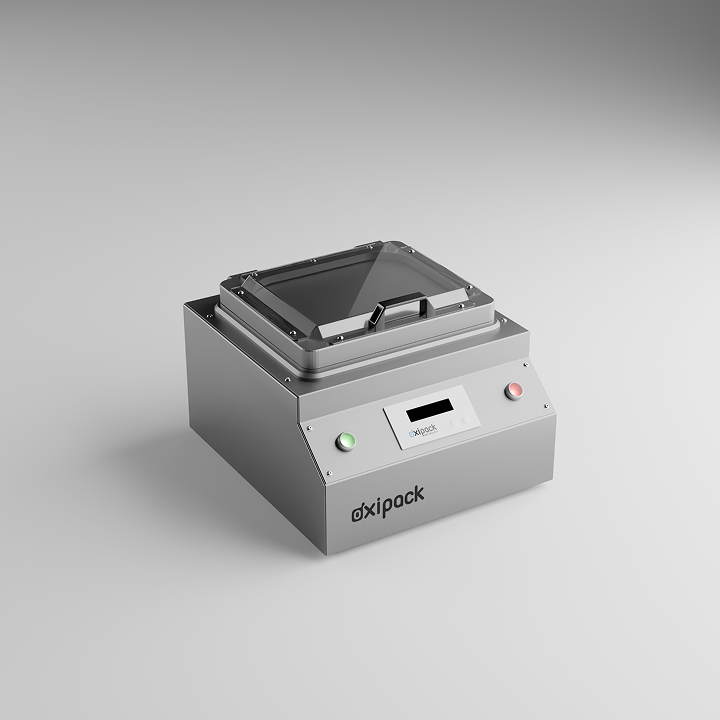

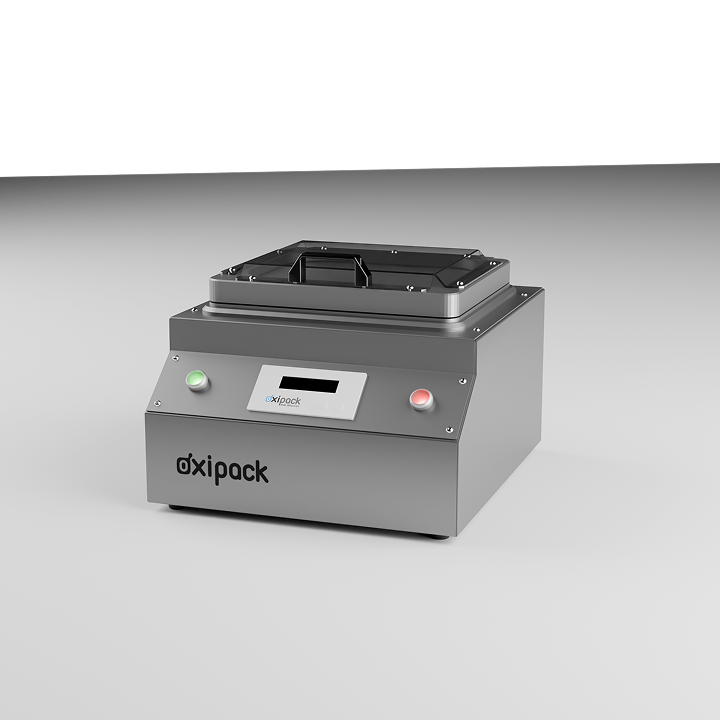

Stationary Leak Tester XS

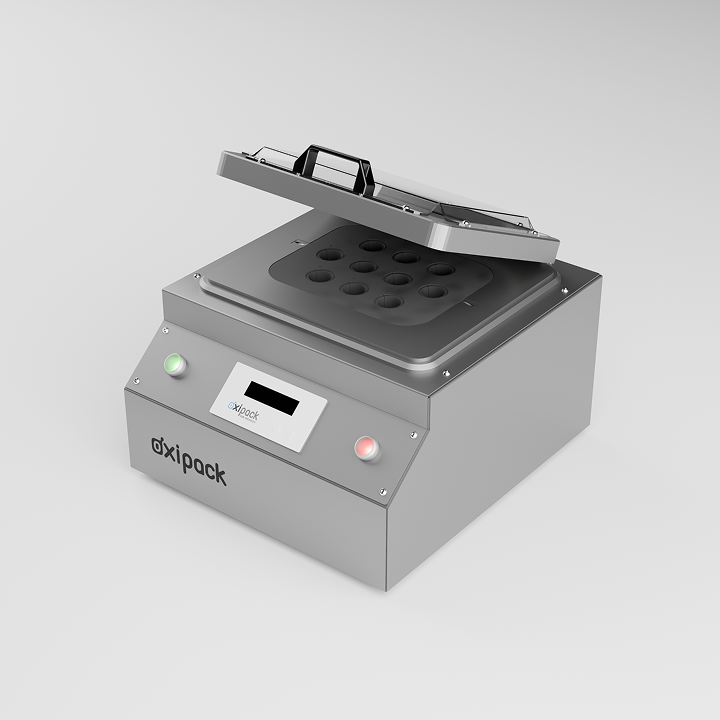

The Oxipack Stationary Leak Tester XS is an innovative solution tailored for testing rigidly shaped products such as closed coffee capsules, trays, cups, and pods. It excels in detecting the smallest micro leaks non-destructively and with high accuracy. The SLT XS's unique design includes a rigid plate custom-molded to fit the specific shape and quantity of the items being tested, allowing for precise and efficient testing.

Operationally, the SLT XS stands out for its speed and cleanliness, offering a dry and rapid testing process with fixed settings. Its capability to store operator-independent results and easy export options enhances its utility. Conforming to ASTM F2338 standards, this machine is a standout for its non-destructive testing approach, ensuring both accuracy and ease of use in quality control.

Features

Non-destructive vacuum decay method (ASTM F2338).
Customizable for various packaging types (rigid and flexible).
Can test multiple packs simultaneously.
Operator-independent results.
Integrated vacuum pum p and control systems.

Benefits

High precision in detecting micro leaks.
Adaptable for different sizes and shapes.
Fast and efficient, suitable for high-volume testing.
Consistent and reliable results.
Easy to operate with immediate feedback.

Dimensions and Weight: 475 x 425 x 333 mm (L x W x H), 22 KG
Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber
Power Supply: 100 - 230V 50/60HZ
Air Supply: > 5.5 - < 8 bar/ 8mm connection
Air Consumption: 150 Nl/min
Compliance and IP Rating: CE IP20
Test Block Size: 200 x 250 x 425 mm (L x W x H)
Leak Detection Method: ASTM F2338
Minimum Leakage: > 0.9 cm3/min
Maximum Testing Capacity: 2 cycles P/M
Connections: USB/Ethernet export, 24VDC logic (free programmable)
Packaging Type and Size: Rigid Package MAP Cup Tray Pod
Options: IOT Data, Barcode scanner, Printer, Line Numbers, OPC UA
Features: Non-destructive, accurate, easy to operate, direct result, robust design

Suitable for:

Stick Packs

Sachets

Trays

Cups

Capsules & Pods
