The Oxipack Travel Leak Tester (TRLT) is a compact, mobile version of our proven leak detection system, specially designed for use in the field. Whether you're auditing packaging quality at customer sites, performing supplier inspections, or conducting remote quality checks, the TRLT offers full functionality without the need for compressed air.

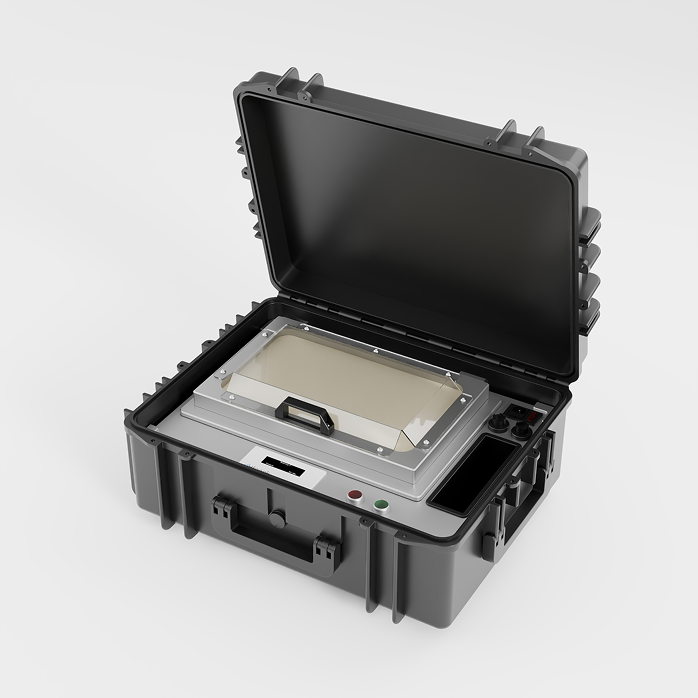

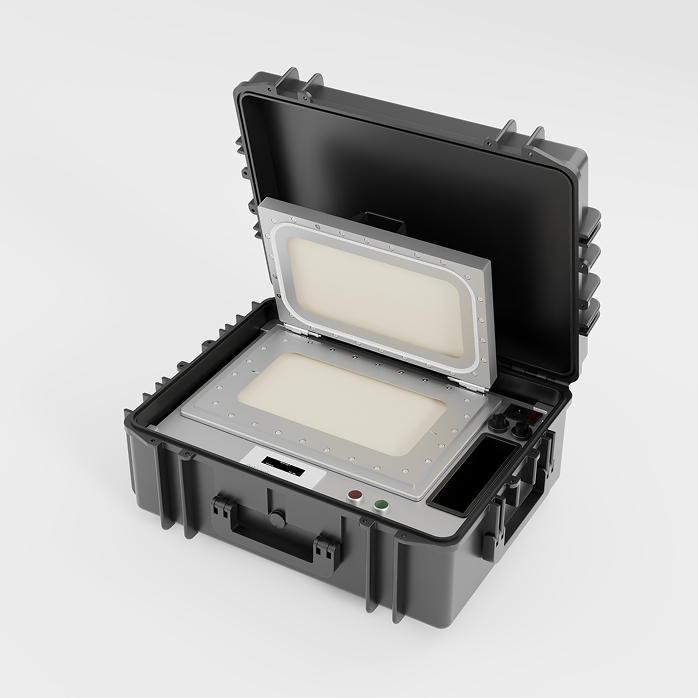

Housed in a durable travel case, the TRLT features an integrated electric vacuum pump, enabling reliable, non-destructive leak detection anytime, anywhere. Like the SLT, it uses flexible membranes to create a vacuum chamber around the packaging ensuring accurate testing without damaging the pack or stressing the seals.
Capable of detecting both large and micro leaks, the TRLT operates according to ASTM F2338 and includes a simple interface with visual pass/fail indicators and a quantitative leak measurement display. Easy to set up and transport, the TRLT ensures consistent Oxipack testing performance, even on the road.
Features
- Non-destructive vacuum decay method (ASTM F2338-compliant)
- Integrated electric vacuum pump, no need for compressed air
- Built into a rugged, travel-ready case for mobility and field use
- Suitable for testing flexible and semi-rigid packaging types
- Intuitive interface with clear pass/fail indication and leak value readout
- Self-contained system with all components onboard
- Consistent, operator-independent measurements
Benefits
- Enables leak testing at customer or supplier locations
- Maintains high sensitivity for detecting even micro leaks
- Ready to use in minutes- plug and play setup
- Eliminates need for facility air connections or external equipment
- Reliable, repeatable results regardless of user skill level
- Saves time and ensures packaging integrity is checked wherever needed
- Ideal tool for audits, training, and remote validation support
Technical Specifications
- Dimensions and Weight: 560 x 750 x 1200 mm, 105 KG
- Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber, Accura Xtreme
- Power Supply: 230V 50/60HZ
- Size Measuring Chamber: 225 x 130 x 55 mm (L x W x H)
- Compliance and IP Rating: CE IP40
- Maximum Testing Capacity: 1 test P/M
- Connections: Ethernet export, 24VDC logic (free programmable)
- Packaging Type: Vacuum
- Options: IOT Data, Barcode scanner, Printer, Line Numbers
- Features: Non-destructive, accurate, easy to operate, direct result, robust design
