Stationary Leak Tester M (SLT M)

Published on
June 7, 2024

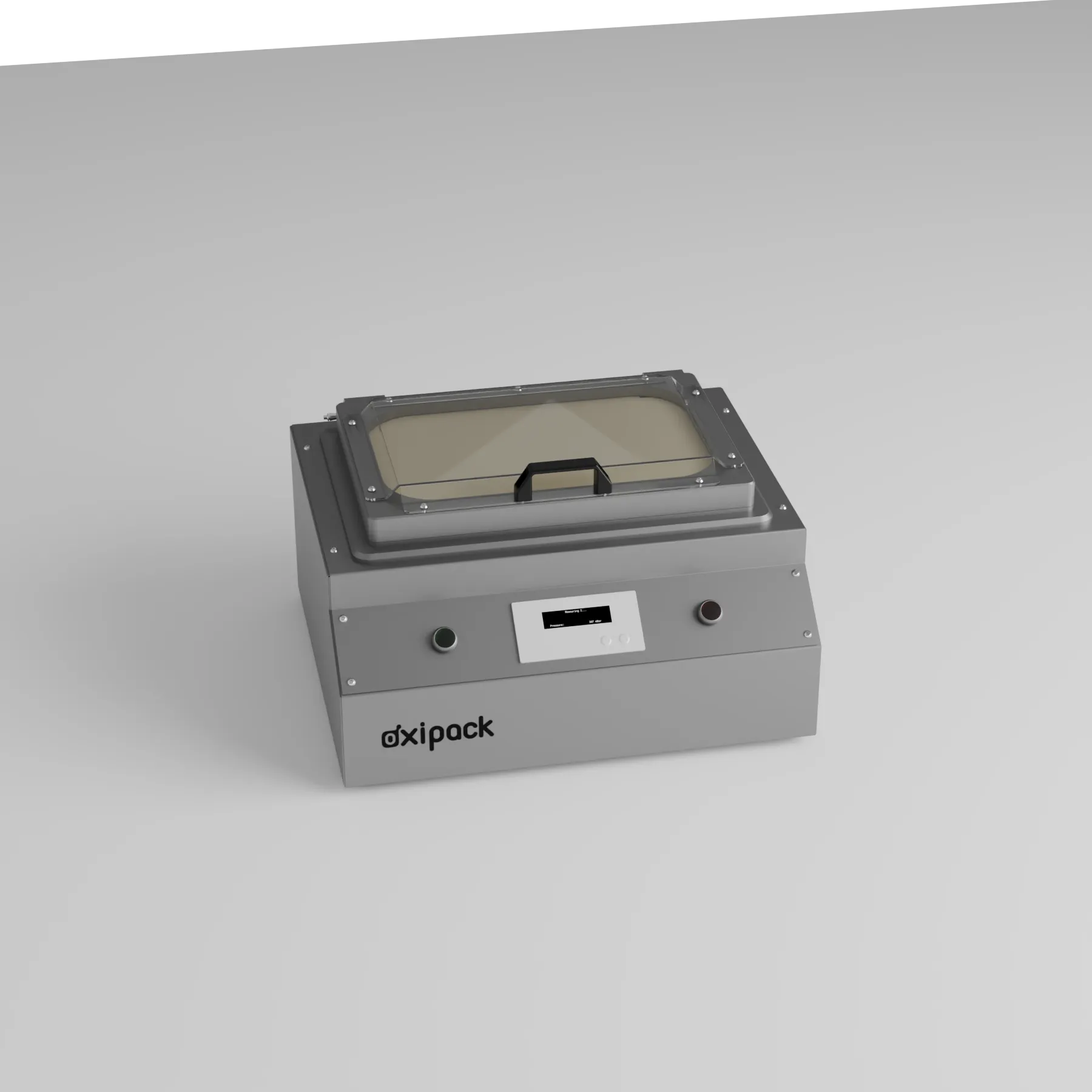

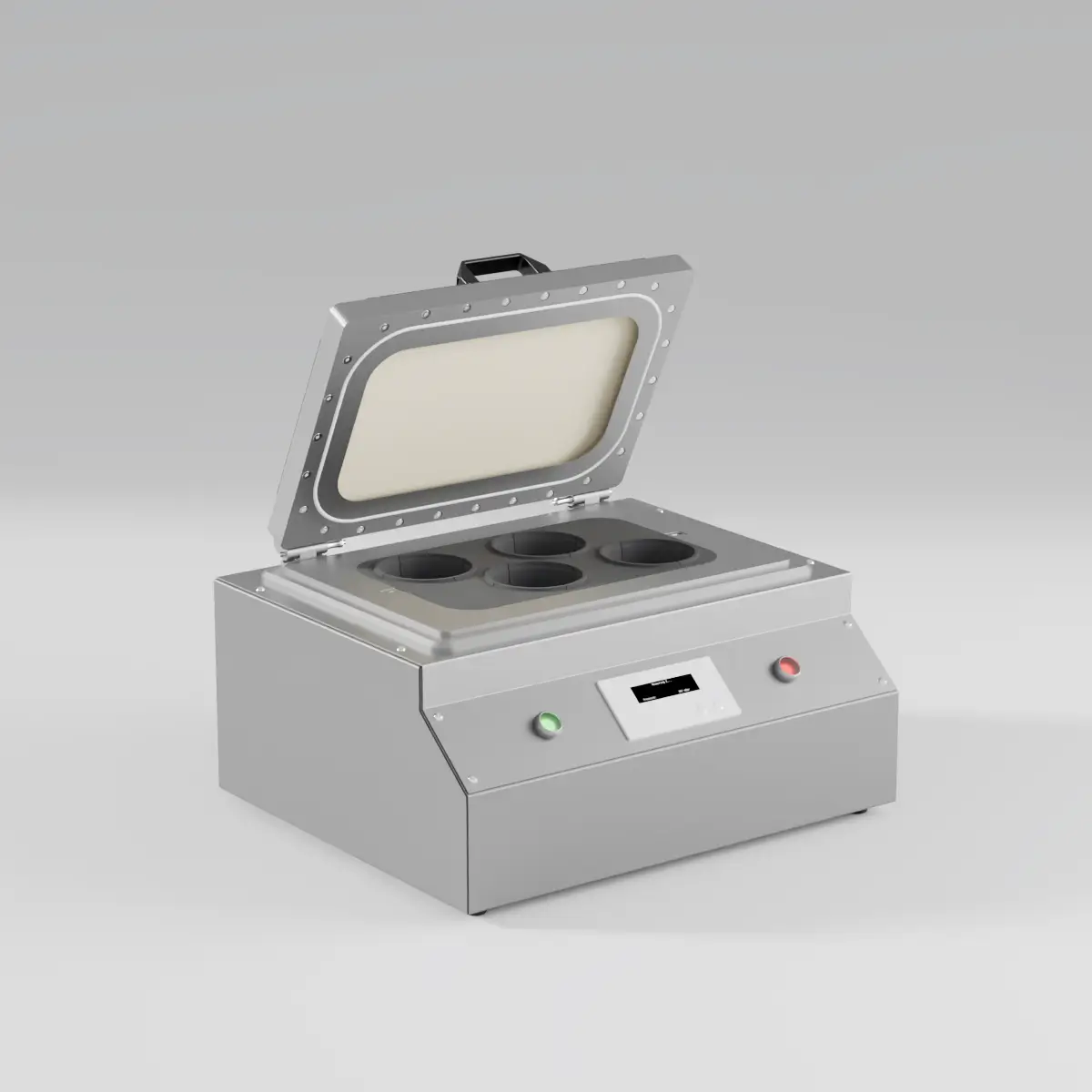

The Oxipack Stationary Leak Tester M is a patented, non-destructive testing solution specifically designed for products with rigid shapes such as closed coffee capsules, trays, cups, and pods. It accurately detects even the smallest micro leaks with high precision, using a custom-designed rigid plate that matches the shape and number of packs or capsules to be tested.

This machine offers a dry, clean, and fast testing process with fixed settings for operator-independent results. Custom dummy capsules can be used to identify the exact location of leaks. Meeting the ASTM F2338 standards for leak detection, the SLT M is a reliable and efficient tool for quality control in packaging, offering a non-destructive, accurate, and straightforward operation.

Features

  • Non-destructive vacuum decay method (ASTM F2338).
  • Customizable for various packaging types (rigid and flexible).
  • Can test multiple packs simultaneously.
  • Operator-independent results.
  • Integrated vacuum pump and control systems.

Benefits

  • High precision in detecting micro leaks.
  • Adaptable for different sizes and shapes.
  • Fast and efficient, suitable for high-volume testing.
  • Consistent and reliable results.
  • Easy to operate with immediate feedback.

Technical Specifications

  • Dimensions and Weight: 475 x 555 x 334 mm (L x W x H), 30 KG
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber
  • Power Supply: 100 - 230V 50/60HZ
  • Air Supply: 55 - 8 bar
  • Compliance and IP Rating: CE IP40
  • Test Block Size: 200 x 350 x 425 mm (L x W x H)
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: > 09 cm3/min
  • Maximum Testing Capacity: 2 cycles P/M
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: Rigid packages
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers, OPC UA
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design
