Stationary Leak Tester XL (SLT XL)

Published on
June 5, 2024

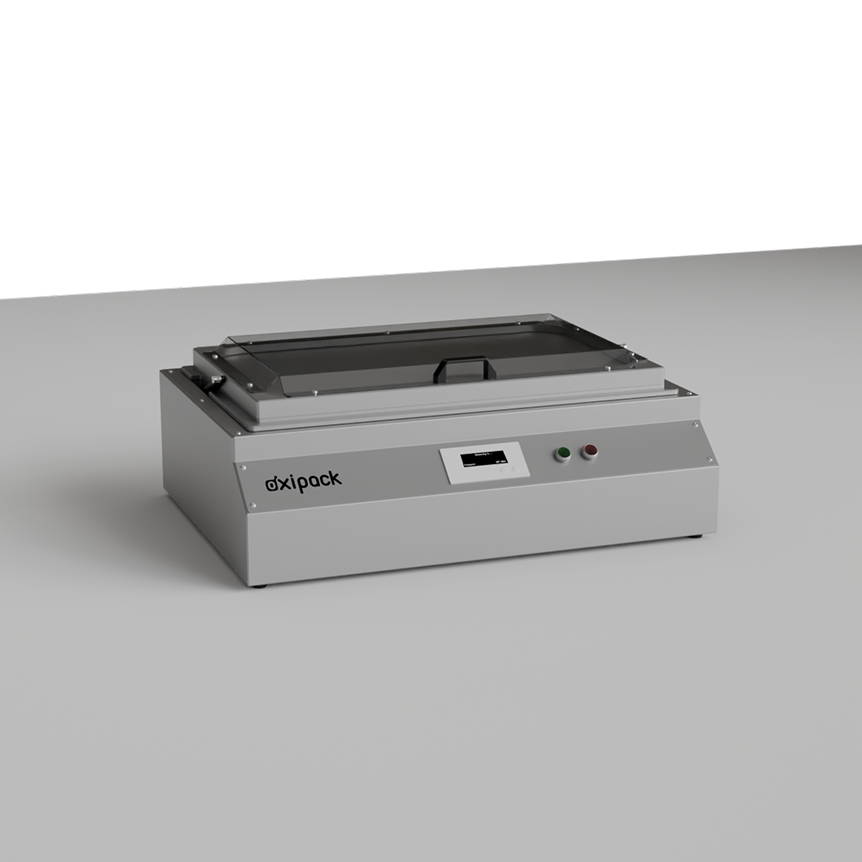

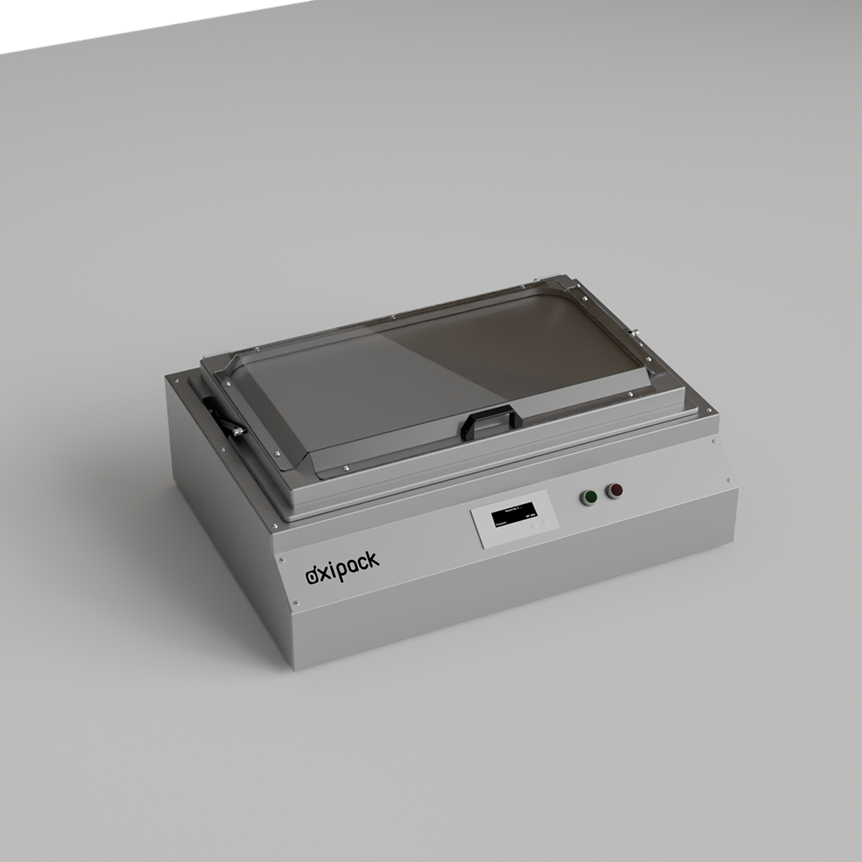

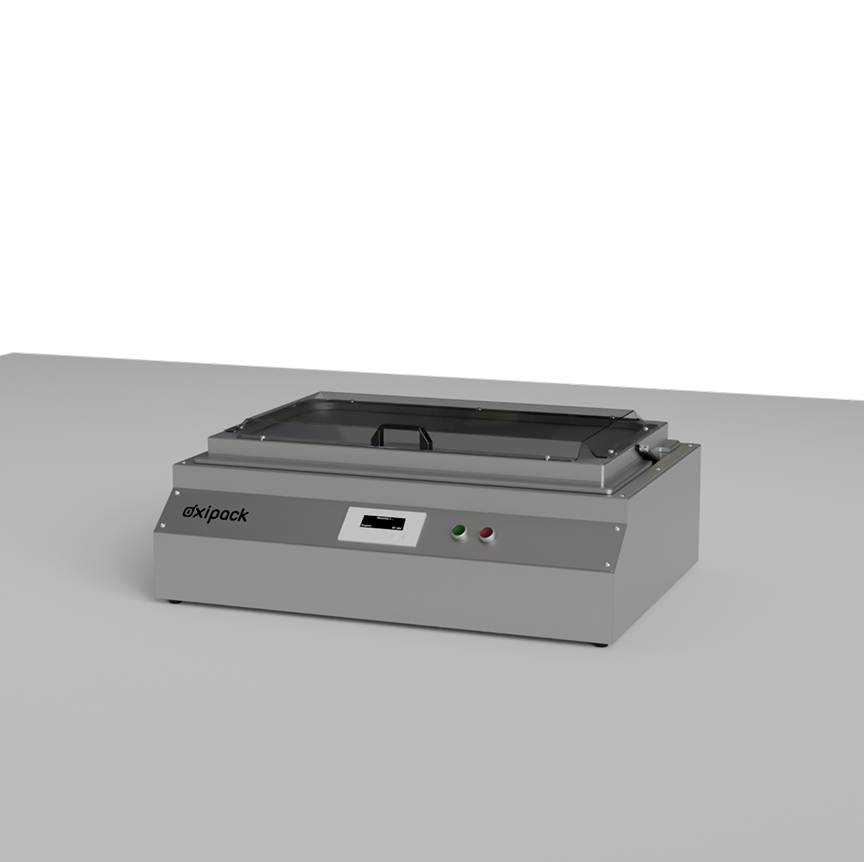

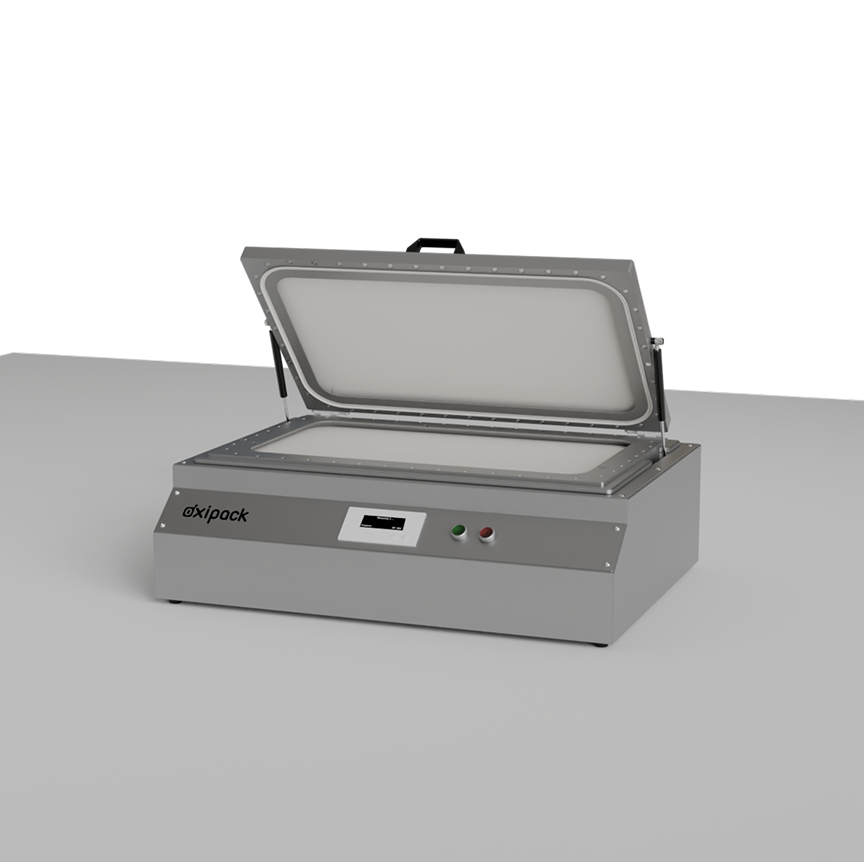

The Oxipack Stationary Leak Tester XL is a dynamic and versatile tool for testing a wide array of flexible (MAP) packaging. Utilizing two rubber membranes, it creates a deep yet gentle vacuum around the packaging, enabling the detection of both significant and microscopic leaks without damaging the packaging. This feature is particularly beneficial for ensuring product integrity across various packaging types.

The SLT XL's efficiency is remarkable, as it can test multiple packs or sachets concurrently, providing quick, efficient, and objective results. The machine's interface is user-friendly, with immediate visual feedback through green (OK) or red (NOT OK) lights, and a display showing leak magnitude. Adhering to the ASTM F2338 standards, the SLT XL is a robust, precise, and user-friendly machine, ideal for streamlined quality control in packaging.

Features

  • Non-destructive vacuum decay method (ASTM F2338).
  • Customizable for various packaging types (rigid and flexible).
  • Can test multiple packs simultaneously.
  • Operator-independent results.
  • Integrated vacuum pump and control systems.

Benefits

  • High precision in detecting micro leaks.
  • Adaptable for different sizes and shapes.
  • Fast and efficient, suitable for high-volume testing.
  • Consistent and reliable results.
  • Easy to operate with immediate feedback.

Technical Specifications

  • Dimensions and Weight: 630 x 855 x 333 mm (L x W x H), 45 KG
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber
  • Power Supply: 100 - 230V 50/60HZ
  • Air Supply: 55 - 8 bar
  • Compliance and IP Rating: CE IP20
  • Size Measuring Chamber: 350 x 650 x 116 mm (L x W x H)
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: > 21 cm3/min
  • Maximum Testing Capacity: 2P/M
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: MAP up to 350 x 650 x 116 mm (L x W x H)
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers, OPC UA
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design
