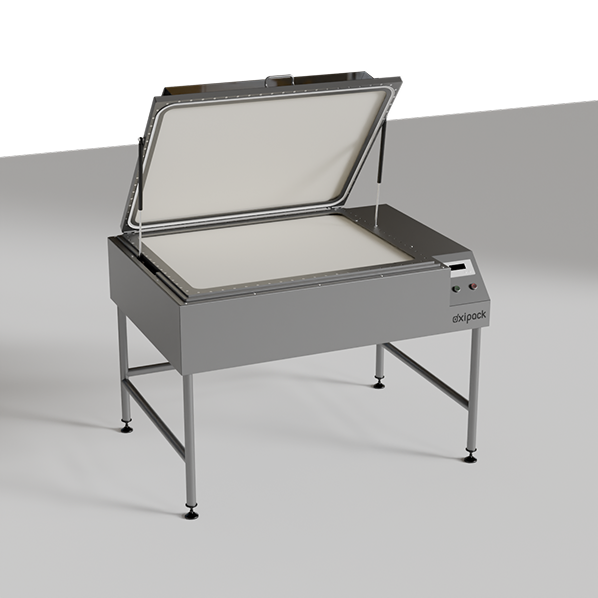

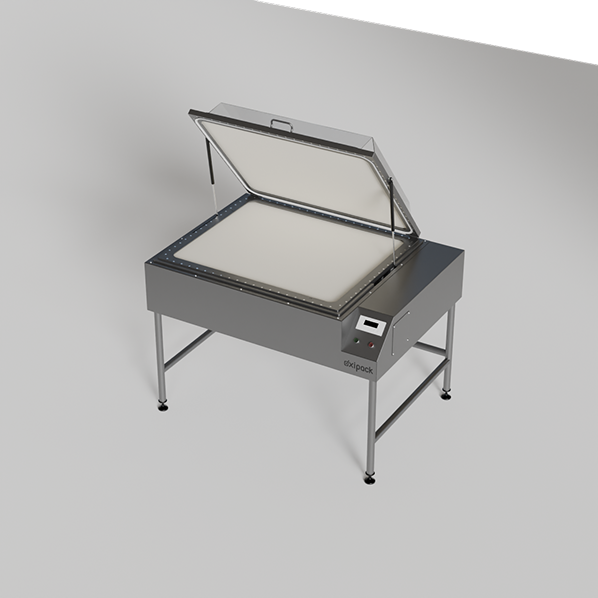

Stationary Leak Tester XXXL (SLT XXXL)

Published on
July 2, 2024

The Oxipack Stationary Leak Tester XXXL is designed to handle a broad spectrum of large packaging types, accommodating up to 25 Kg. This machine is particularly versatile, suitable for products ranging from milk powder packages to large pet food bags, and is even capable of testing outer packaging to ensure a sterile environment. Its design includes two rubber membranes that allow the creation of a deep vacuum in the test chamber without harming the packaging.

What sets the SLT XXXL apart is its capability to test for both micro and larger leaks without needing to adjust any settings. This machine adheres to the non-destructive detection standard ASTM F2338, ensuring meticulous and precise leak detection. Its robust design and sophisticated testing method make it an ideal solution for quality control in large-scale packaging needs.

Features

  • Non-destructive vacuum decay method (ASTM F2338).
  • Customizable for various packaging types (rigid and flexible).
  • Can test multiple packs simultaneously.
  • Operator-independent results.
  • Integrated vacuum pump and control systems.

Benefits

  • High precision in detecting micro leaks.
  • Adaptable for different sizes and shapes.
  • Fast and efficient, suitable for high-volume testing.
  • Consistent and reliable results.
  • Easy to operate with immediate feedback.

Technical Specifications

  • Dimensions and Weight: 014[407[165PPL x W x H, 125 KG
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber
  • Power Supply: 100 - 230V 50/60HZ
  • Air Supply: 5.5 - 8 bar
  • Compliance and IP Rating: CE IP20
  • Size Measuring Chamber: 800 x 1000 x 300 mm (L x W x H)
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: > 5.4 cm3/min
  • Maximum Testing Capacity: 1 P/M
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: MAP up to 800 x 1000 x 300 mm (L x W x H)
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers, OPC UA
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design
